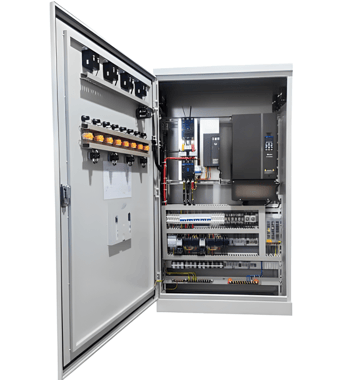

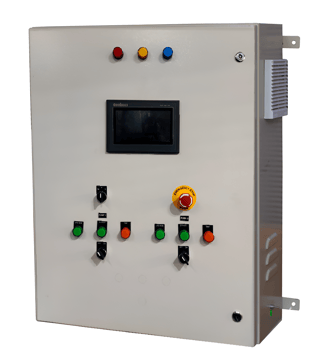

Variable Frequency Drive (VFD) Panel

A Variable Frequency Drive (VFD) panel is an essential component in modern industrial and commercial applications. It houses and controls a Variable Frequency Drive, a sophisticated electronic device that adjusts the speed and torque of AC electric motors.

Working of VFD Panel

Power Reception: The VFD panel receives power from the main power source.

VFD Operation:

• The VFD within the panel converts fixed frequency AC power into variable frequency AC power.

• It achieves this by:

  • Rectifying AC input to DC.

  • Inverting the DC back to AC, but with adjustable frequency.

Motor Control:

• The VFD supplies the variable frequency and voltage to the motor.

• By controlling the frequency, the panel precisely adjusts the motor's speed.

Protection & Monitoring:

• The panel incorporates protective devices (circuit breakers, fuses, overload relays) to safeguard the VFD and motor.

• Integrated sensors and displays monitor motor parameters like speed, current, and temperature.

Key Benefits of VFD Panels

• Energy Efficiency:

  • Precise speed control optimizes motor operation, reducing energy consumption significantly.

  • Enables efficient operation across a wide range of speeds.

• Improved Process Control:

  • Precise speed control enhances process accuracy and consistency.

  • Enables smooth starts and stops, reducing mechanical stress on equipment.

• Enhanced Productivity:

  • Optimizes production processes, increasing throughput and efficiency.

• Reduced Maintenance:

  • Smooth starts and stops minimize mechanical wear and tear on equipment.

• Improved Safety:

  • Protects motors from damage due to overloads and other faults.

Applications of VFD Panels

VFD panels find applications in a wide range of industries:

• Industrial:

  • Pumps (water, wastewater, oil & gas)

  • Fans and blowers

  • Conveyors

  • Compressors

  • Mixers and agitators

• Commercial:

  • HVAC systems

  • Escalators and elevators

• Utilities:

  • Water treatment plants

  • Wastewater treatment plants

By choosing Dheeraj Power Controls, you're investing in a reliable and efficient motor control solution that enhances energy efficiency, improves process control, and reduces operating costs.
